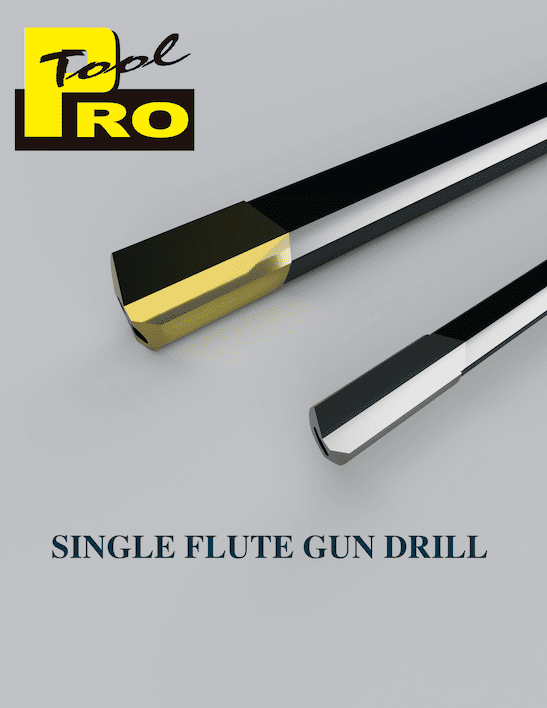

◆ Single flue gun drill system.
◆ Adopt in gun drilling machine or machine center with internal coolant system.
◆ Diameter from 1.9mm – 50mm.
◆ Tool lengths up to 5000mm are available depending on tool diameter.
◆ Customizable carbide head length and driver depending on machine type.
◆ Drilling length can achieve up to D x 250.
◆ Diametric tolerance can achieve up to IT7 under specific cutting condition.
◆ Excellent hole straightness and concentricity.
◆ Excellent surface quality.
◆ Easy regrinding.
◆ With over 20 years of experience, we offer all sorts of geometry to fit any drilling situations.

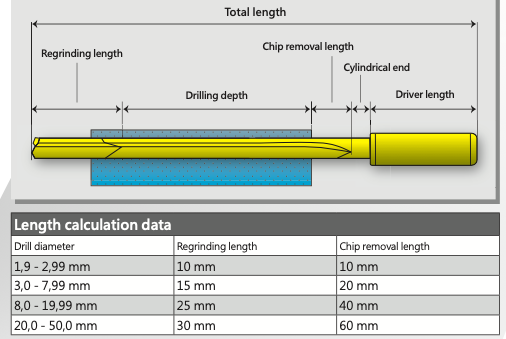

In deep hole drilling machine application, tool length should be adjusted according the machine type.

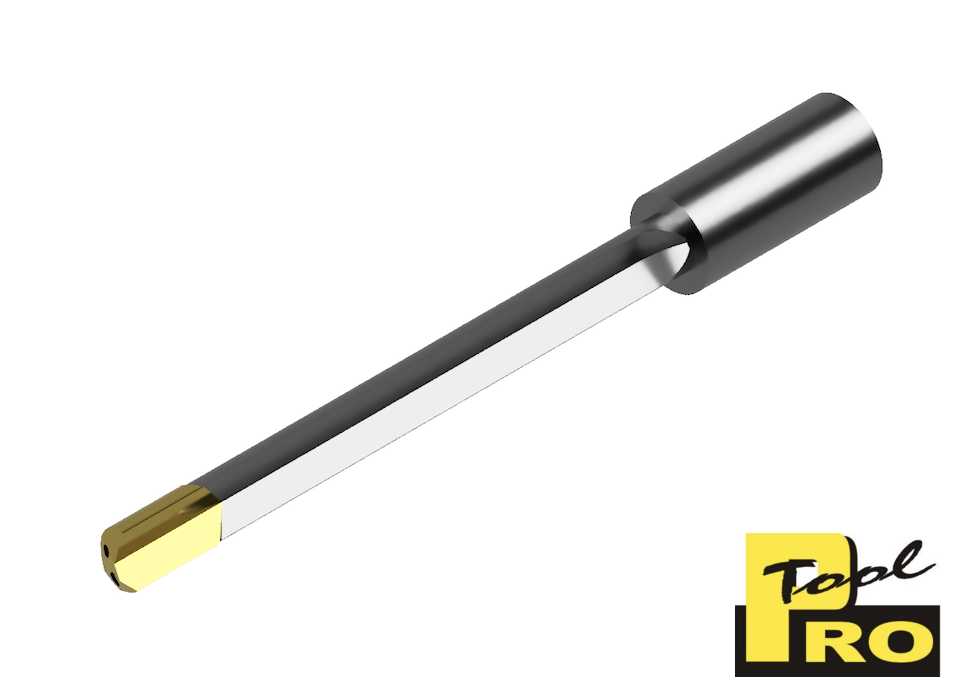

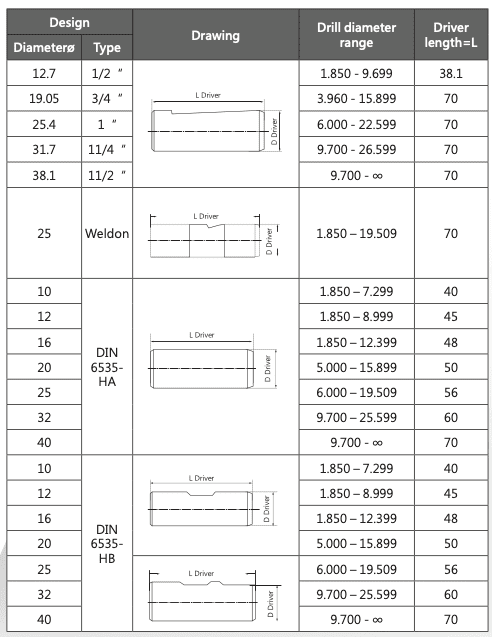

Gun Drill Drivers
The gun drill is typically connected to the machine's spindle by a driver. We manufacture many different standard drivers for stock and are also capable of providing customized drivers.
